V1100PRO

Reliable Industrial Application Expert

V1100 PRO folding uav for industrial application is equipped with dual-frequency ultra-long distance transmission system and safe and reliable intelligent flight control system with ultra-long battery life. Industrial application APP software, simplified operation, safe and efficient operation.

FlightSafety

Foldable Design

63-min Flight Duration

12KM Video Transmission

IP43

Foldable Design For Great Portability

The innovative design makes the aircraft arms and landing gear all foldable and portable. Easy assembly generates quick operation.

Click on

30X Zoom Camera

HD Image，Multi-purpose

A 30x optical zoom camera is mounted as standard, and ultra-long-distance monitoring can observe all the details of the scene, which can effectively help formulate rescue plans. It can also be used in one machine for multiple purposes. According to different needs of customers, different equipment can be mounted, such as infrared thermal imaging cameras, low-light night vision cameras and other equipments.

The largest stream

64Mbps

Recording resolution

4K / 30FPS

Super wide Angle vision

Distortion is minimized

The dual 4K HD 3-lens camera

The WK20T dual 4K ultra HD three-lens camera integrates visible light fixed focus wide-angle camera,visible light zoom camera, thermal imaging camera and laser range finder in one, supported by advanced intelligent algorithms, bringing unprecedented sensing and imaging capabilities to industrylevel UAVs. Support point temperature measurement, area temperature measurement, and high temperature alarm can visually display different temperature ranges, helping you quickly and accurately locate the target object. Support real-time target recognition, target location and target tracking functions.

Thermal image camera sensor 640x512

160 times hybrid optical zoom

Laser range 1200m

Visible light and thermal imaging linkage zoom

Smart night view enhancement

IP44 protection class

Reliable Flight Control System

The V1100 PROmulti-rotor flight control system adopts the latest control and navigation algorithm, which can realize real-time data backup for each other. Combined with the new internal shock absorption structure design, it gives the aircraft high reliability.

12km Transmissioncontrol

Adopts 2.4G long-distance transmission system, which can transmit the maximum map distance up to 12KM. advanced SDR technology and super protocol stack,the image is clearer, the delay is lower, Strong anti-interference ability, stable and reliable transmission.ordinary mobile devices

Intelligent remote control

WKRC-H12 uses Qualcomm processor,Android embedded system, advanced SDR technology and super protocol stack,clearerimage, lower delay, longer distance, strongeranti-interference. Let you get rid of the interference of complex information when using ordinary mobile devices,and work more easily and efficiently.

Industrial Application Software

To meet special requirements in many industrial applications, we developed an APP for V1100 PROthat greatly simplifies the flight operations.

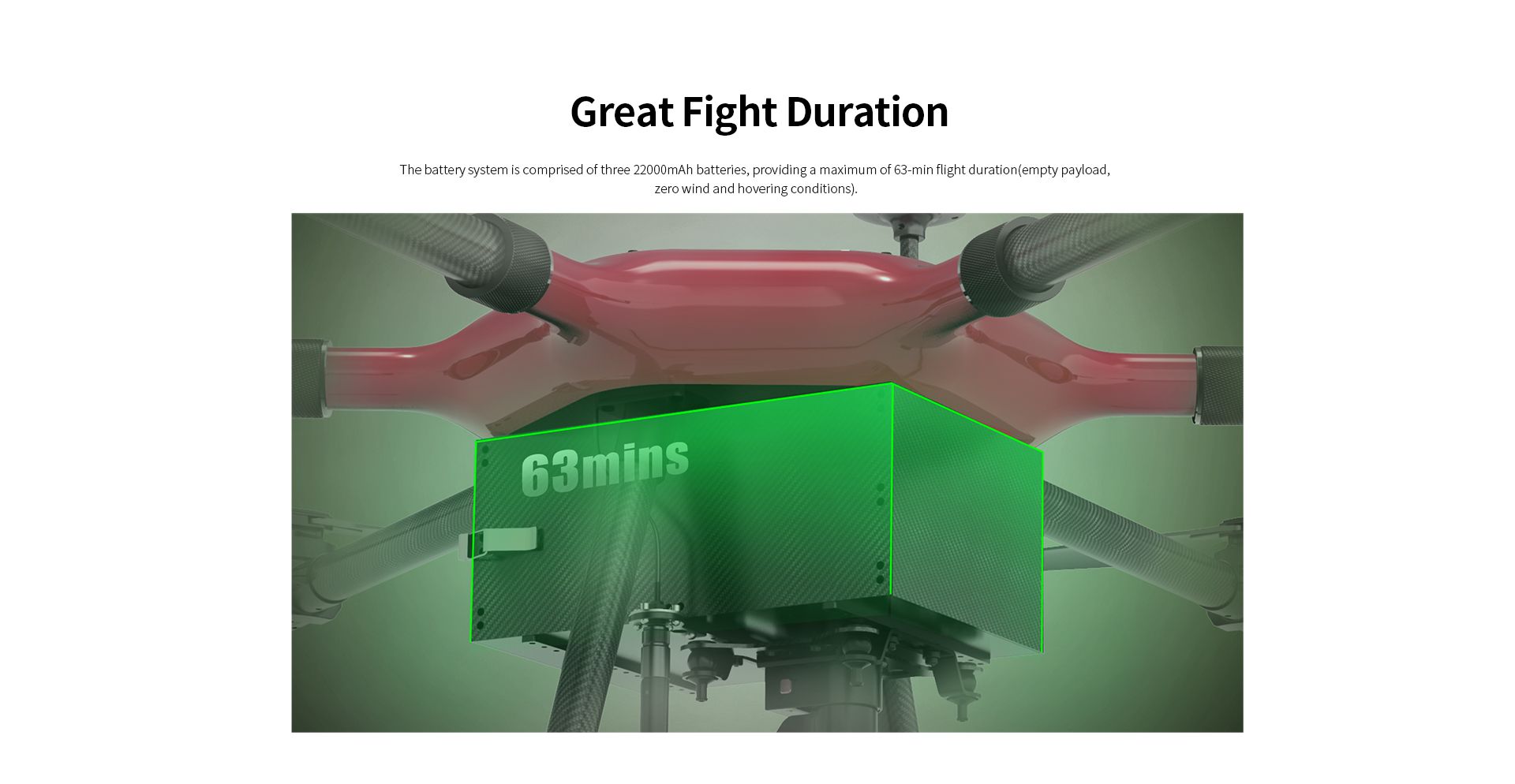

Great Fight Duration

The battery system is comprised of three 22000mAh batteries, providing a maximum of 63-min flight duration(empty payload, zero wind and hovering conditions).

Large Load,Three Safeguard

V1100 PRO With powerful load expansion function, it can be used in a wide range of applications with highly integrated devices. The fuselage adopts closed design, IP43 three - proof capability, and has industrial grade water proofdustproof andanti-corrosion ability.

Payload-carrying Platform For Industrial Applications

Multi-purpose Gas Analyzer(customized)

It is used in environmental inspection, fire fighting and rescue

Tilt Camera(customized)

Applied mapping

Searchlight, Loudspeaker(customized)

Suitable for firefighting, search and rescue, police reconnaissance.

V1100PRO

Technical Specifications

Aerocraft

Symmetrical motor wheelbase	1188mm
Body size	Expand: 1291 × one thousand one hundred and twenty-nine × 480mm； Fold: 600 × four hundred and eighty × 480mm
electric machinery	KV value: 160rpm/V
Electric regulation	Continuous current: 60A (good heat dissipation condition)
Blade specification	Diameter x pitch: 22.4x8 inb
Standard takeoff weight	10kg (including battery)
Maximum takeoff weight	17kg (near sea level)
Maximum lifting speed	5m/s
Maximum descent speed	2m/s
Maximum horizontal flight speed	Positioning mode: 5~10m/s adjustable (windless environment); Cruise mode: 10m/s adjustable (windless environment); Attitude mode: 15m/s (windless environment)
Maximum pitch angle	Positioning mode: 30 °; Cruise mode: 30 °; Attitude mode: 30 °
Maximum rotation angular velocity	120°/s
Maximum tolerable wind speed	8m/s
Maximum endurance	63 minutes (no load)
Maximum flight altitude	5000m
Operating ambient temperature	Recommended temperature: 0 ° C~+40 ° C
Hover accuracy	Vertical:+0.5m (when GPS positioning works normally); Horizontal:+0.1m (when GPS positioning works normally)

PTZ

Size	136x98x 139mm
Weight	452g
Input voltage	12V
Stabilize the system	3-axis (pitch, roll, level)
Angle control precision	Static:+0.008 °; Dynamic:+0.02 °; Anti shake:+0.008 °
Controllable rotation range	Pitch: - 110 ° to+60 °; Horizontal:+150 °; Roll:+10 °
Maximum control speed	Pitch: 30%/s; Horizontal: 30%/s; Roll: direct angle control

camera

Lens Pixel	12 million
Focus time	2 seconds
sensor	1/2.3 SONY IMX117 CMOS
ISO Scope	Video: 100~3200; Photo: 100~1600
Video recording resolution	4K 30fps
Photographic resolution	3840x2160
focal length	6.7-134.5mm
Zoom magnification	30x optical zoom
Multiplying speed	About 2.0 seconds
Horizontal perspective	59.8 °~3.0 ° (wide-angle - telescopic)
Close-up distance	5000mm (wide angle view)
Video storage bitstream	64Mbps maximum
Compression standard	H.264 / H.265
Support file storage format	File system: FAT32; Picture format: JPG; Video format: MP4
Supported memory card types	MicroSD card, supporting up to 128G, with transmission speed of Class10 or above or reaching UHS-1 rating

Flight battery

Voltage 45.6V( 22.8V* 2)
capacity 25000mAh
discharge rate 10C
Battery type LiHV 12S

Remote control

model	WKRC-H12
working frequency	2400MHz to 2483MHz
Maximum communication distance	12Km (open without shelter and electromagnetic interference)
Display device	5.5 inch 1920 * 1080 1000NITS highlight display
Charging interface	TYPE-C
Battery	3.7V 10000mAh LiPo 1S
Operating ambient temperature	-10 ℃ to 40 ℃
Charging ambient temperature	5 ℃ to 40 ℃
weight	530g
size	19015294mm

Balanced charger

input voltage	100~240V
output power	1300W(650*2)
Discharge power	50W(25W*2)
Charging current range	Max 25A*2
Maximum balance current	1.5A
Rechargeable battery type	Lithium battery (LIPo) High voltage lithium battery (LiHV)
Number of rechargeable batteries	6 sections * 2
Charging mode	Balanced charging/battery storage
